*** Available in November 2008 ***

Key Features:

• Outdoor AP with Built-in Gateway Mode Enabling AAA --> No Need for Extra Controller
• Access Control Per SSID/VLAN for Differentiated Branded Services
• IP68 Rating, Surge immunity up to 15KV for harsh environments
• Robust, Flexible, and Reliable Wireless Link Construction

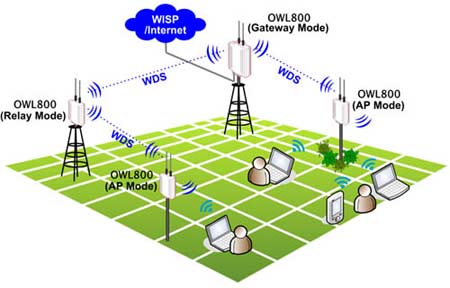

Deployment Example

Features & Benefits

Rugged Dual Radio 802.11a/b/g Access Point

• Weatherproof and watertight rugged cast-metal housing (IP68 compliant)
• Surge immunity up to 15KV
• Powerful IXP425 533 MHz CPU
• Four low loss N-type connectors ready for flexible outdoor antenna choices

Multiple Modes with Integrated AAA and User Management

• Support multiple operation modes – Gateway mode (built-in AAA), AP mode, and Relay mode
• Built-in Local accounts and On-demand accounts for user authentication
• All-in-one installation solution --> no need for extra gateway on the edge side

Robust, Flexible and Reliable Wireless Link Construction

• Two built-in 802.11 a/b/g radio with two additional mini-PCI slots for future expansion
• Support 4 WDS links per 802.11a/b/g radio module
• Advanced wireless security with AES over WDS link
• Dynamic wireless link backup for network reliability

Excellent Solution for Building Community WLAN

• Supports network segmentation with 8 SSID/VLANs
• Access control per service set defined by SSID and VLAN for multiple, differentiated branded service operations
• Multiple OWL800’s can also work with external WLAN controllers to build a mesh-like WLAN

          Download Datasheet
